Use an Elemental with Akamai (Manual)

Live Event Setup

Access the Elemental’s web interface to begin the process. To create a new event, click on “New Event +” in the upper right corner.

elementalHome



  1. Enter a name for the Event
  2. Select the Input Type. Typically, this will be an SDI input. Be sure to verify with the client which SDI input will be used.

elementalManualInput



You can click the Preview button to the right of the Input field to see if there is an active video signal on that input. If there is not a signal, the interface will tell you.



elementalManualPreview1

elementalManualPreview2

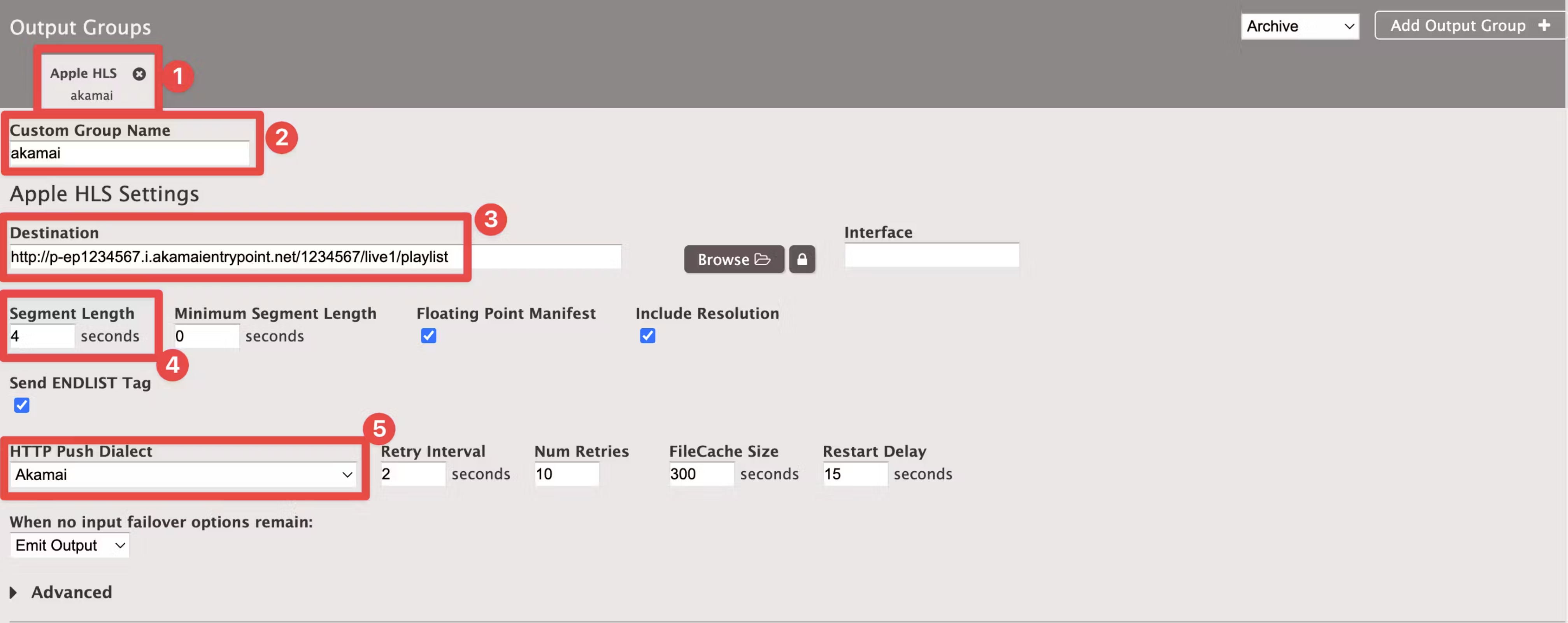

Output Groups

  1. Delete all output groups except for Apple HLS. You can do this by pressing the X next to the output group.
  2. Rename the Custom Group Name to something like akamai
  3. In the Destination Field, paste the Akamai Entrypoint URL given to you by your Sardius Account Manager or Support Team.
    1. Be sure to add /playlist to the end of the Destination URL
  4. Adjust your segment length to 4 or 6 seconds.
  5. Update HTTP Push Dialect to Akamai



elementalAkOutputGroup



Outputs

We recommend creating a minimum of 4 outputs for Akamai Stream. Once you have created all of your outputs, proceed to “Streams”



Output 1: 1080

  1. In the “New Output” section, click on “Add Output+” on the right-hand side.
    This will create a new output and a new stream called Stream 1
  2. In the Name Modifier, enter -1080

Outputs 2-4: 720, 480, and 360

Repeat the steps above to create additional outputs for 720, 480, and 360 resolutions.



Streams

Now it’s time to configure the stream that is being fed to each output.
Each Stream will need some unique configuration based upon the designated resolution. We will also notate what items will need to be changed/added from the default settings.

We'll go through the full steps for the 1080 Stream, and then we'll provide a table for the remaining streams.



Stream 1: 1080

Under Video:

  1. Resolution: 1920 w X 1080 h
  2. Click on the Advanced Settings icon
    1. Rate Control Mode: CBR
    2. Bitrate: Enter 4m or 6m
    3. GOP Size: 4 or 6
      1. This MUST match or be half the size of the Segment Length under the Output Group
    4. Units: Seconds
    5. B Frames: 2  or 3

Under Audio 1

  1. Change the Bitrate to 192.0 kbit/s

Streams 2-4: 720, 480, 360

Stream Resolution RateControl Bitrate GOP Size Units B-Frames Audio Bitrate
720 1280x720 CBR 2m or 3m 4 of 6 Seconds 2 or 3 192 kbit/s
480 854x480 CBR 1m or 2m 4 or 6 Seconds 2 or 3 128 kbit/s
360 640x360 CBR 600k or 800k 4 or 6 Seconds 2 or 3 128 kbit/s

Review and Save

Take a moment to review all of your settings. Once you are satisfied, you can click the “Create+” button found at the top right and bottom right of the page. This will create the Event and you will be taken to the Event control page.



elementalManualCreate



The image below is an example of the Event Control Page. This is an Event that is ready to start:

elementalMepReady



Create an Event from a Template

Download an XML Template here.

To create an event using a template, start by selecting “New Event” from the Elemental homepage.

At the top right, you will see a button that says “Load” - Click on this, then select “Load Event XML”

elementalManualLoad
  1. In the box that appears, click “Choose File”
  2. Locate your file, then click “Apply”

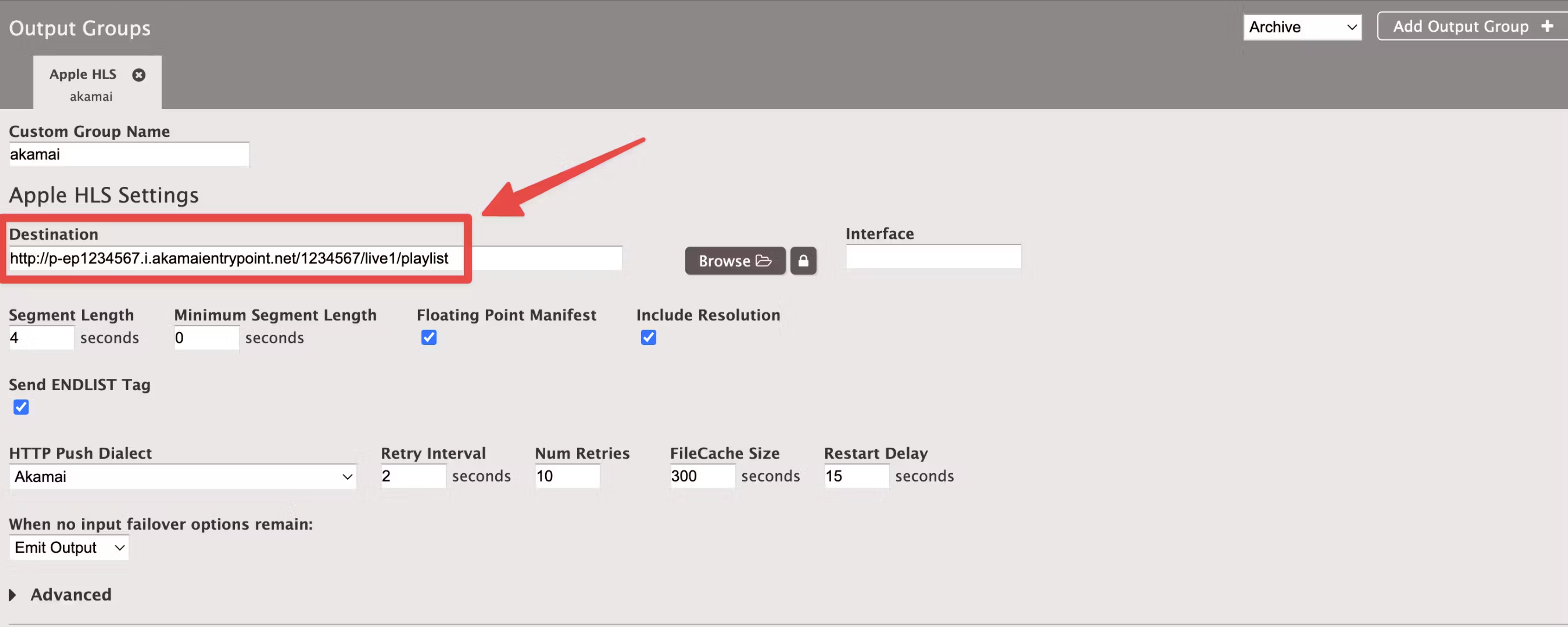

  3. With the channel loaded, scroll down to the Output Groups. Replace the HLS Destination according to what you were given by your Sardius Account Manager / Support Team.
    1. Be sure to add /playlist to the end of the URL.
elementalAkTemplateOutputGroup

As necessary, adjust:

  1. Output Groups
    1. Segment Length
  2. Outputs
    1. Add/Remove Outputs
    2. Adjust Name Modifiers
  3. Streams
    1. Resolution
    2. Bitrate
    3. GOP
    4. Any other Audio/Video Settings
Scroll to the bottom of the page and click the “Create+” button. This will create the Event and you will be taken to the Event control page.
